The LTDx MAX driver combines the extreme forgiveness of the LTDx driver with an adjustable heel weight position that lets you fine-tune the amount of draw bias you need.

Headcover and wrench included.

Tech Overview

PWR-COR TECHNOLOGY

PWR-COR Technology is a multi-material weighting system that positions as much weight as possible low and forward. 10 grams total (a 6g machined steel internal weight and a 4g exterior aluminum weight) is positioned right behind the hitting zone to transfer maximum speed to the golf ball at impact with reduced spin.

H.O.T FACE TECHNOLOGY

Using machine learning and CNC machining, we’ve created a new variable thickness design that is precision tuned for speed. H.O.T stands for “Highly Optimized Topology.” Using data from thousands of impact simulations, we’ve optimized thicknesses in multiple zones to maximize ball speed across a larger area of the face. These zones create visual peaks and valleys that resemble a topology map, which is how the design got its name.

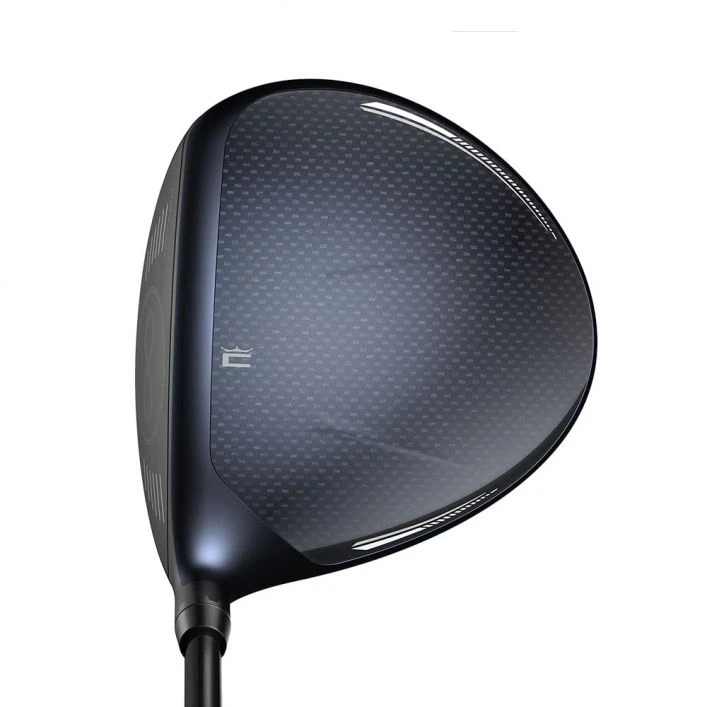

MULTI-MATERIAL CONSTRUCTION

A multi-material construction uses a lightweight carbon crown and sole plate, and a lighter and stronger titanium chassis. The new chassis design is 8.3g lighter and allows for up to 30% more carbon fiber to be used. A lighter chassis is critical to freeing up more discretionary weight that could be positioned low and forward in the PWR-COR to increase ball speed.

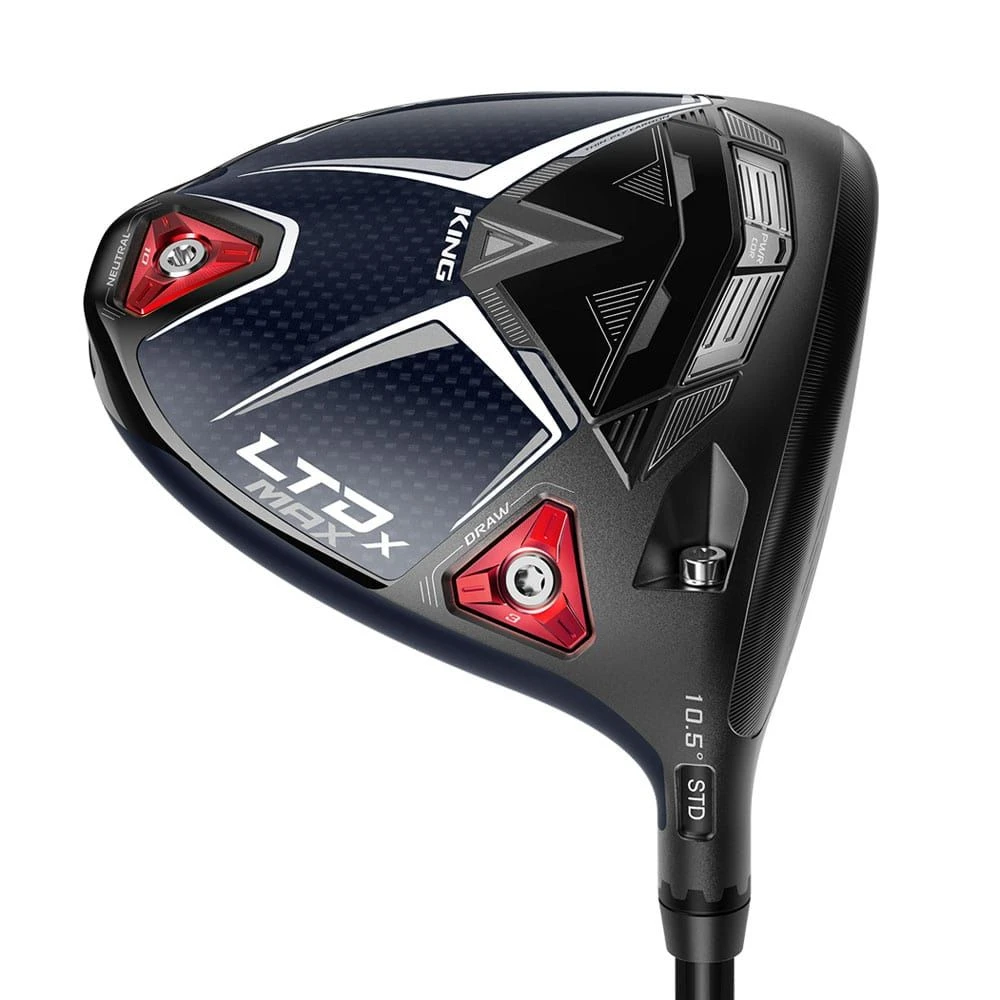

ADJUSTABLE WEIGHTING

Two adjustable weights (a heavy 10g and a lightweight 3g) can be positioned in the back and heel position. Position the 10g heavy weight in the back for a neutral to draw biased ball flight, or in the heel for max draw bias (11 yards).

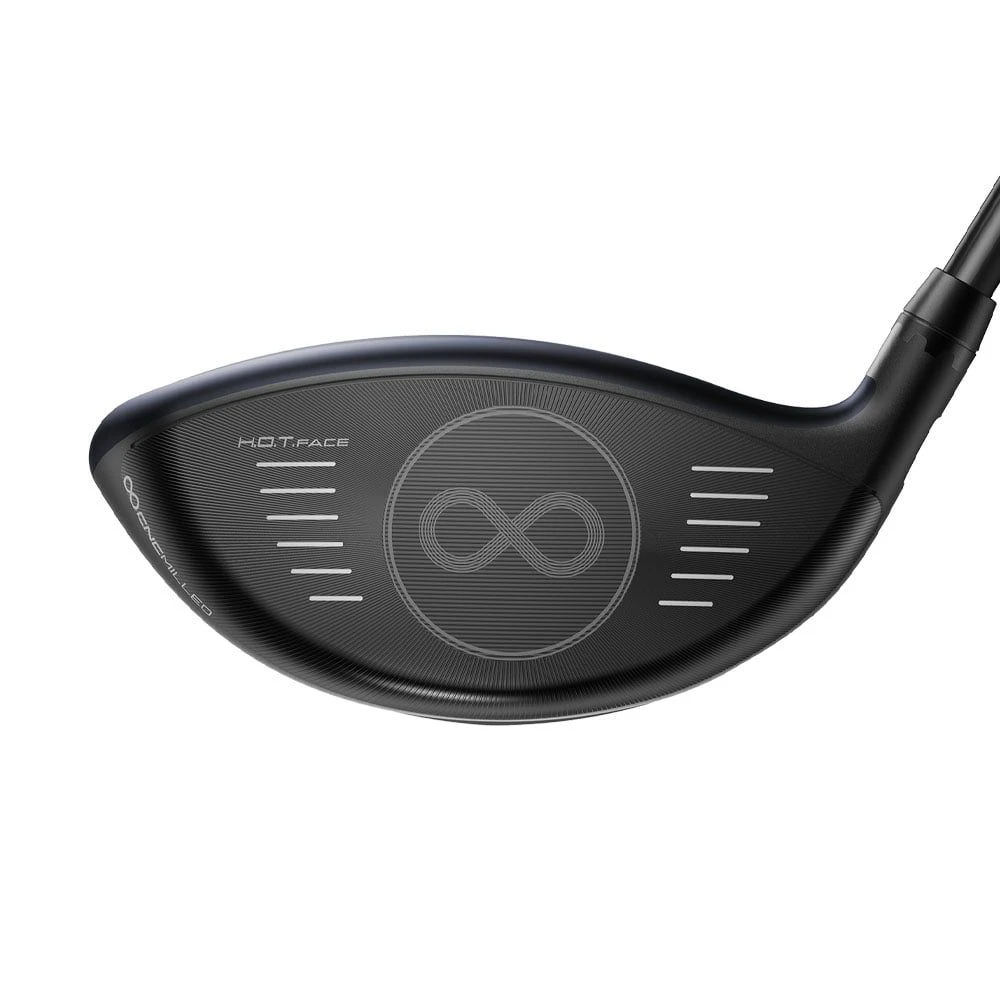

CNC MILLED INFINITY FACE

An updated CNC Infinity Face design wraps around the leading edge to increase the zone of maximum ball speed while providing a traditional topline for improved visual alignment.

Specifications

LOFT	LOFT SETTING -1.5° / -1° / -1° Draw / STD° / STD° Draw / +1° / +1° Draw / +1.5°	LIE ANGLE	ADJUSTABILITY	LENGTH (Arccos grip adds .25″ in custom)	SWING WEIGHT/SHAFT OFFERING	SHAFT FLEX	RH/LH
9.0°	7.5° / 8.0° / 8.0° Draw / 9.0° / 9.0° Draw / 10.0° / 10.0° Draw / 10.5°	57.50°	BACK/HEEL	45.50″	iM10: D4 RDX Blue: D2	S, R	RH/LH
10.5°	9.0° / 9.5° / 9.5° Draw / 10.5° / 10.5° Draw / 11.5° / 11.5° Draw / 12.0°	58.50°	BACK/HEEL	45.50″	iM10: D4 RDX Blue: D2	S, R, A	RH/LH
12.0°	10.5° / 11.0° / 11.0° Draw / 12.0° / 12.0° Draw / 13.0° / 13.0° Draw / 13.5°	59.50°	BACK/HEEL	45.50″	Helium: D1.5 (R), D2 (A)	R, A	RH/LH

Shafts

PROJECT X HZRDUS Smoke iM10 60

The iM10 features Hexcel’s® incredibly unique iM10 carbon fiber, a very high modulus (stiff) and very high strength carbon fiber allowing for new possibilities in golf shaft design. The iM10 shafts offers unmatched stability in a playable mid-launch & mid-spin design.

PROJECT X HZRDUS Smoke iM10 60

Model	Description	Flex	Shaft Weight	Kick Point	Launch	Spin	Torque	Tip Diameter
PROJECT X HZRDUS Smoke iM10 60	6.0	Stiff	66g	Mid	Mid	Mid	3.7	0.335
PROJECT X HZRDUS Smoke iM10 60	5.5	Regular	65g	Mid	Mid	Mid	4.8	0.335

PROJECT X HZRDUS Smoke RDX Blue 60

The HZRDUS RDX Blue is mid launch profile designed with a stiffer tip section for players with a more aggressive swing tempo that desires a higher launch with low spin.

PROJECT X HZRDUS Smoke RDX Blue 60

Model	Description	Flex	Shaft Weight	Kick Point	Launch	Spin	Torque	Tip Diameter
PROJECT X HZRDUS Smoke RDX Blue 60	6.5	Extra Stiff	64g	Mid-High	Mid	Low	3.4	0.335
PROJECT X HZRDUS Smoke RDX Blue 60	6.0	Stiff	64g	Mid-High	Mid	Low	3.4	0.335

UST Helium Nanocore 40, 50

The Helium wood shafts are a light weight design using materials in innovative ways for the best in feel and stability never seen before in light weight structures. This is for the golfer seeking to maximize distance with longer builds and incredible control.

UST Helium Nanocore 40, 50

Model	Description	Flex	Shaft Weight	Kick Point	Launch	Spin	Torque	Tip Diameter
UST Helium Nanocore 50	5F3	Regular	55g	Low	High	High	5.7	0.335
UST Helium Nanocore 40	4F2	Lite (Senior)	45g	Low	High	High	6.3	0.335

Grips

Lamkin Crossline (58R) - Black/Silver (48.5g)

Lamkin Crossline (58R) – Black (48.5g)

Find Your Perfect Trajectory

LTDX LS LTDX LTDX MAX

A10g in heel delivers a neutral to soft fade ball flight
B10g in the toe delivers up to 4 yards of additional fade bias

LTDx LS Trajectory

Lower Spin With Higher Forgiveness

PWR-COR Technology positions a substantial amount of weight low and forward for faster ball speed with reduced spin. An additional tungsten back weight takes our fastest driver and makes it extremely forgiving and playable for a wide range of players.

Our Hottest Face Design

A new H.O.T Face design is precisely tuned for speed using machine learning. Using data from thousands of impact simulations, we’ve created multiple zones with perfected thicknesses to increase ball speed across a larger area of the face.

LTDxMAX multi-material construction tech

Lighter & Stronger Construction

A multi-material construction features up to 30% more carbon and a lighter and more stable titanium chassis. The new design maximizes weight savings so we can position more mass low and forward in the PWR-COR to increase speed.

Premium Aftermarket Shafts

A club’s performance is a product of each of its components, which is why we use premium aftermarket shafts in our drivers. Aftermarket structures are designed with premium materials that provide maximum stability. Each model and loft is available in a variety of structures and weight profiles to find your ideal performance.

Dexterity	Right Hand, Left Hand
Loft	9.0°, 10.5°, 12°
Flex - Shaft	Senior – UST Helium Nanocore, Regular – UST Helium Nanocore, Regular – Project X HZRDUS Blue, Regular – Project X HZRDUS Smoke iM10, Stiff – Project X HZRDUS Blue, Stiff – Project X HZRDUS Smoke iM10
